用途：
主要用于电子、视频、医药行业和医院等要求高洁净度的场合的终端过滤
特性：
对≧0.3μm颗粒的过滤效率在99.99%以上
用电脑制的全自动折叠机系统进行喷胶折叠，折叠高度范围可在20mm~100mm之间无级调节
专用玻璃纤维滤纸作为滤材
采用国际标准尺寸规格

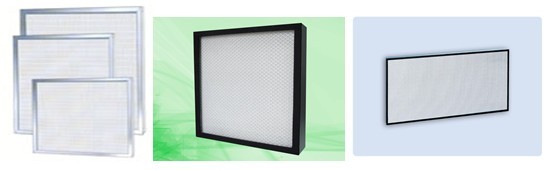

No HEPA air filter
Uses:
Mainly used in electronics, video, the pharmaceutical industry and hospitals requiring high cleanliness occasions terminal filter
Features:
≧ 0.3 particle filtration efficiency of 99.99%
Computer system for automatic folding machine, glue folding, folding height range between 20mm to 100mm step less adjustment
The dedicated glass fiber filter paper as filter
Adoption of international standards sizes
|
型号
type
|
外形尺寸
Outside look
（mm）
|
过滤面积
Filter area
（㎡）
|
风速0.45m/s时阻力
Wind speed 0.45m / s resistance
（Pa）
|
额定风量
rated airflow
（m³/h）
|
|
宽×高×深
W × H × D
|
|
HJW-50
|
305*305*50
|
1.6
|
180-200
|
150
|
|
305*610*50
|
3.3
|
300
|
|
610*610*50
|
6.7
|
600
|
|
915*610*50
|
10.1
|
900
|
|
1219*610*50
|
13.5
|
1200
|
|
HJW-69
|
305*305*69
|
2.7
|
250
|
|
305*610*69
|
5.5
|
500
|
|
610*610*69
|
11.3
|
1000
|
|
915*610*69
|
17.0
|
1500
|
|
1219*610*69
|
22.7
|
2000
|
|
HJW-90
|
305*305*90
|
3.7
|
300
|
|
305*610*90
|
7.5
|
550
|
|
610*610*90
|
15.4
|
1100
|
|
915*610*90
|
23.2
|
1600
|
|
1219*610*90
|
31.1
|
2500
|
