用途：
用于高洁净度厂房和洁净室的送风系统的终端过滤，有效地确保气流速度和防止涡流
特性：
对于对≧0.3μm颗粒的过滤效率在99.99%以上
箱体采用优质镀锌钢板、喷塑冷轧钢板或不锈钢板制成，外贴防火保温层
内装可更换的无隔板过滤器，过滤材料采用超细玻纤滤纸，阻力低风量大，占用空间小
美观大方、结构紧凑，安装维护方便简单
出风面装有优质电泳光亮铝板网或不锈钢板网
每个过滤箱经严格检测

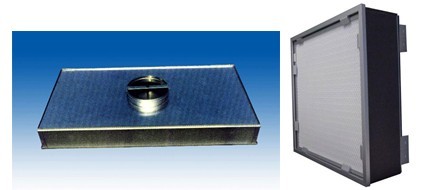

Replaceable high-efficiency air filter box
Uses:
For high cleanliness of plant and clean room air supply system, the terminal filter to ensure that the air velocity and prevent eddy
Features:
99.99% filtration efficiency for particles≧0.3
Posted outside the fire insulation box is made using quality galvanized steel, the spray cold rolled steel or stainless steel,
Built-in replaceable filter without clapboard filter material using ultra-fine glass fiber filter paper, low resistance, large air volume, small footprint
Nice, compact structure, convenient installation and maintenance simple
The wind surface equipped with quality electrophoretic light aluminum mesh or stainless steel plate mesh
Each filter box through rigorous testing
|
型号
Type
|
箱体尺寸
Box size
（mm）
|
内装滤器规格
Built-in filter specifications
（mm）
|
进风口尺寸
Size of Air inlet
（mm）
|
初阻力/风量
Initial resistance / air volume
（mm）
|
|
HJK-180
|
570*570*180
|
530*530*69
|
Φ350
Φ350
Φ350
|
100/430
|
125/535
|
150/680
|
180/760
|
|
600*600*180
|
560*560*69
|
100/480
|
125/600
|
150760
|
780/850
|
|
610*610*180
|
570*570*69
|
100/500
|
125//620
|
150780
|
180/880
|
|
1170*570*180
|
1130*530*69
|
100/930
|
125/1150
|
150/1460
|
180/1600
|
|
1200*600*180
|
1160*560*69
|
100/1000
|
125/1255
|
150/1590
|
180/1770
|
|
1210*600*180
|
1170*560*69
|
100/1015
|
125/1267
|
150/1600
|
180/1790
|
|
1220*610*180
|
1180*570*69
|
100/1040
|
125/1300
|
150/1650
|
180/1835
|
